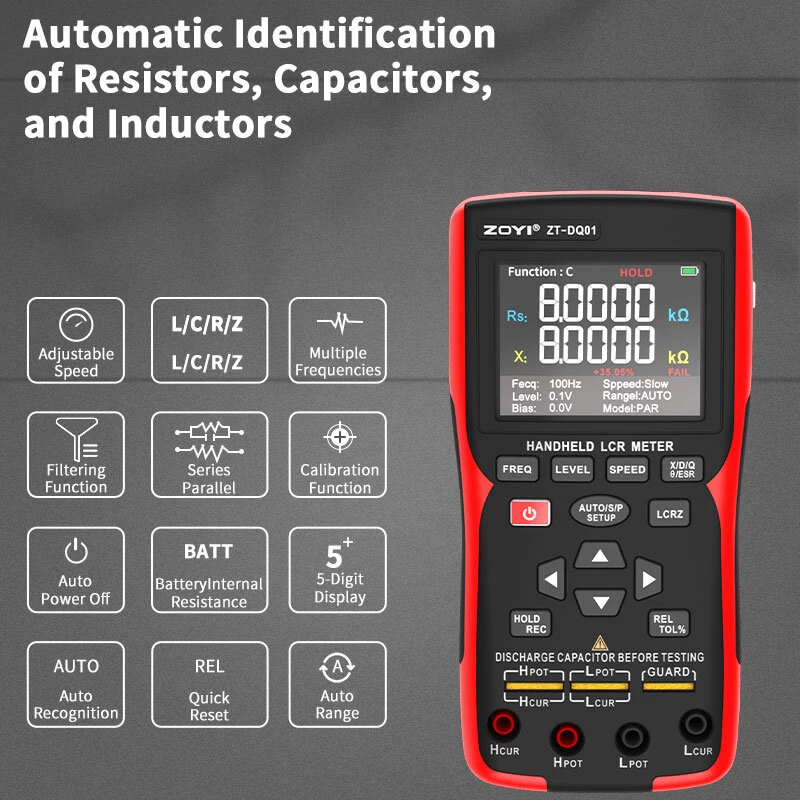

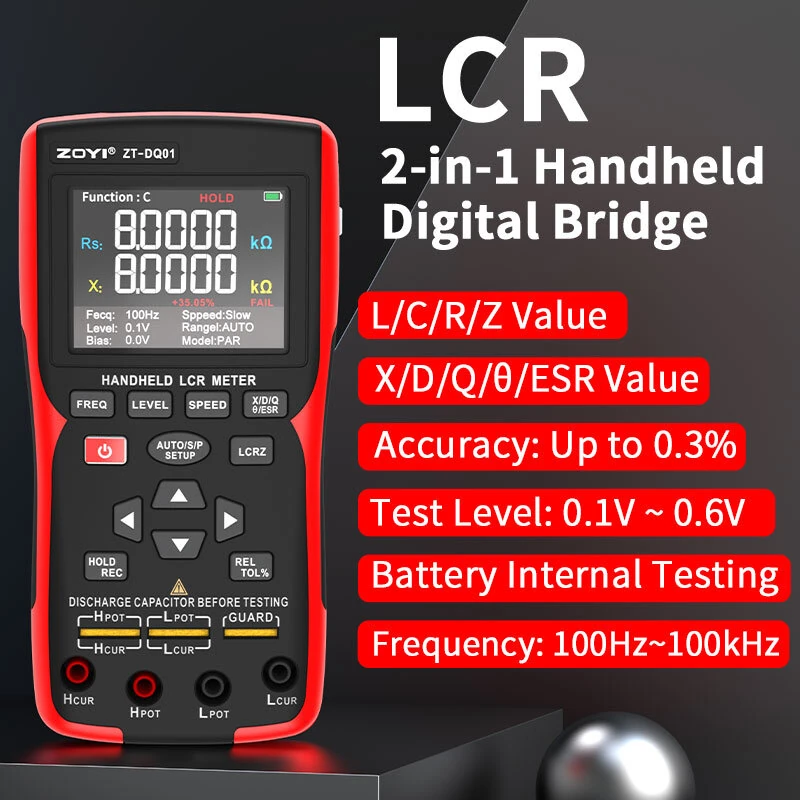

Transistor & LCR Tester
ZOYI ZT-DQ01 ZT-DQ02 Digital LCR Bridge Tester Meter Portable Handheld 0.3% Accuracy Capacitance Resistance Inductance Testing Multiple Frequencies
Questions and Answers

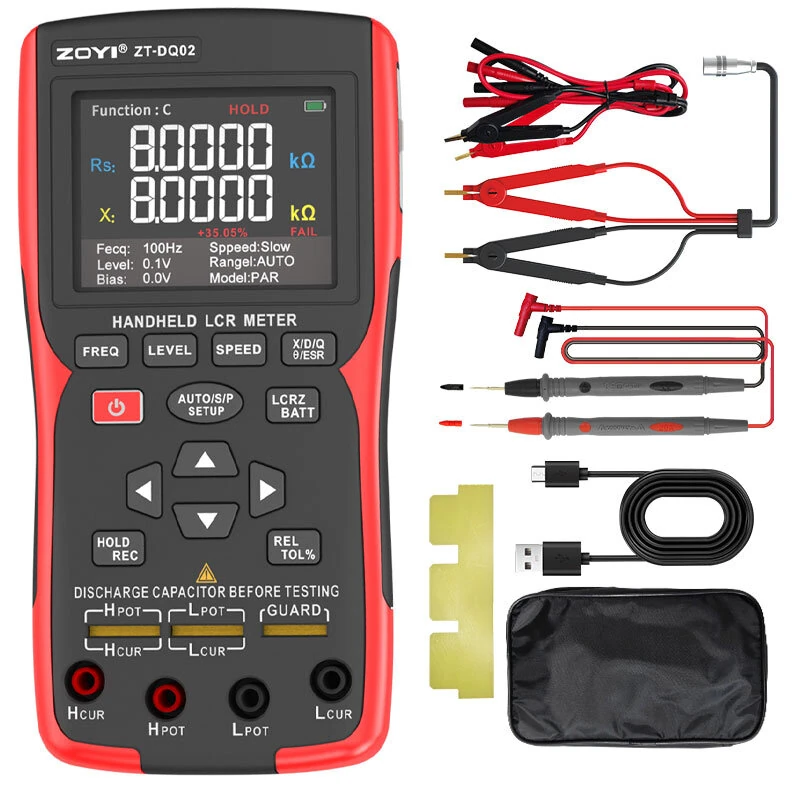

When choosing a product, option C,D is the kelvin clip, in the descxription it is B,D, and in the pictures B,C,D also contain kelvin clip. How can you choose like this?
Hello, the description has been corrected, please refer to the pictures.
Is it possible to sort components by choosing a tolerance on the value?
Oui, entrez en mode de mesure de tolérance
althoigh it is advertised, this meter seems not to have ESR measurement. it dies have Rs of capacitance. any one who already have one has seen it, ESR? SHOW ME A PICTURE.
On the fourth button in the first row of buttons, there is the ESR button, you can take a closer look at the picture.
There is no mention of impedence range - can you tell me what that is and what frequencies imepedence is tested at?
The impedance range is the resistance range. In principle, low frequency is used to measure high impedance and high frequency is used to measure low impedance.
Reviews
szn55
on 30 July 2025
Excellent value for money!
BG523217483
on 24 July 2025
The device works OK upon testing (did not have time to really use it). When compared to its competition it has quite a lot of advantages: 1. better price, nearly half. 2. combines 2 devices by including battery internal resistance measurement. 3. dimension-wise is a bit smaller than EastTester, and even more vs Hantek. 4, includes Kelvin clamps for battery test, which allows measuring extremely low resistances, while else you need to add about 1/4th of the initial price for such an accessory. The second and third features seem less important, but I am tight with space, so I appreciate them most. Good thing is that all these advantages come without any drawback... I shall probably make a review on YT. Some more important detail, as nowhere in the description is mentioned: you can read 0.01 miliOhm (10 microOhm) on the battery internal resistance selection, which is on par with the best resolution from competition, and sufficient for most applications. Very good Zoyi, I am pleased with their devices.
maumog
on 22 July 2025
ok
yanni
on 21 July 2025
recommended.working.thank you.
BG131711131
on 19 July 2025
Working beond expectation, all features are available. A small box making history past. I fixed the isolation plate in place, for sure the main circuit will be defect, when the remaining voltage in a to be tested capacitor, is too high.
BG504837475
on 03 July 2025
ZT-DQ02 very good device for that price. But 100KHz mode is inaccurate. Unshielded Kelvin Clip offered as a supplement is useless on measuring small caps, better buy shielded one with Guard connector.
BG364144515
on 02 July 2025
the package was delivered before the scheduled date._measuring some capacities gives results very close to the UT622._
BG221717811
on 23 June 2025
The package arrived intact.
SouffleVent
on 16 June 2025
The device works correctly
christophepelou
on 08 June 2025
Very good product
Olivier
on 06 June 2025
Fast delivery, one week between the order and receipt 1 week. Package well packaged. Device tested: 100% functional. Thanks to the seller. 👍👍👍
phildem
on 05 June 2025
Great value for money.__Remember to update the firmware__see this video https://youtu.be/sjzqX7lEGnw?si=JRwijQBEQApGTgy_
