Product Details

LILYGO Display Screen

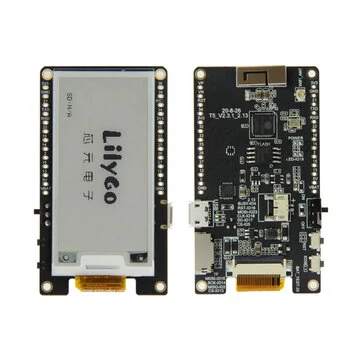

LILYGO® TTGO T5 WiFi Wireless Module bluetooth Base ESP-32 ESP32 2.13 e-Paper Display Development Board

Last updated: 12 October 2024
4,92 189 reviews
🛒 17,22$ from Banggood 🛒
Ship From: CN
1.704 Heats
2.126 Wishlist
4.168 Sold
Share on:
Questions and Answers
Q

have you find a case for this display with battery location?

by Fusercozzani, on 24 April 2020
A

You can find 3D cases on thingiverse or shapeways.

by vchampain, on 06 June 2020
Q

the version i received is 2.3... none of the libraries out there work! help! can someone post the correct library for this version? (2.3)

by Coolty, on 05 April 2019
A

There are two versions of the current 2.13 e-paper, all of which will use the GxGDE0213B72 model later, and the GxGDE0213B1 model has been stopped. The default setting is GxGDE0213B72. If the old version screen is changed, please change the corresponding header in board_def.h. file

by Humbugli236, on 10 April 2019
Reviews
5 out of 5 stars
GaboBravo on 06 January 2023

The package came very well protected and arrived before the deadline. The screen brought the last image of the preloaded program and when I connected the ESP32 device to the USB port, it executed the factory preloaded program correctly. Following the instructions of the software provided by the Banggood page, I reprogrammed the ESP32 with my own information without any difficulty. Very good purchase at a very good price!!!

5 out of 5 stars
constantin on 29 December 2020

This is the third T5 I've bought and I'll probably buy more. It is unbelievable how versatile this gadget is. I even popped a fuse on one of them because I'm a bad engineer and it was very easy to bridge it with a blob of solder. The board worked perfectly after.

5 out of 5 stars
HenningS on 12 December 2020

Fast Controller, sharp display, Lipo Battery Support included. All on 1 compact Board and with really good manufacturing quality. Arduino GUI can be used for programming - my recommendation!

5 out of 5 stars
HenningS on 27 October 2020

Whow - this boards exceeded my expectations by far! - Easy to install and program with Arduino and the original libraries from Lilygo Homepage (use GxGDEH0213B72.h driver) - SD card interface - which I didnt expect on this board - LiPo management chip, just connect a 1s lipo and charge it - ePaper is pretty fast and has good contrast Thats exactly what I looked for to display my solar and smarthomes power status with a simple "out-of-the-box" board. Board is the perfect present also for every DIY Arduino freak... So I immediately ordered 2 more...

5 out of 5 stars
constantin on 12 March 2020

Perfect little board! Over the past few months I've tested every pin and feature and it all works. The partial refresh is nice, but if you use it more than a dozen times in a row without a full refresh, it can burn in a ghost image on the screen.

5 out of 5 stars
Witti_wolf on 12 February 2020

Delivery took longer from UK than from China, but the quality is very good, module works as described. Contrast and display are very good. Gladly again!

5 out of 5 stars
Howie on 14 December 2019

display is working programming with the linked libraries is working

5 out of 5 stars
eszati on 01 November 2019

https://github.com/ZinggJM/GxEPD

5 out of 5 stars
quattrohaje on 04 October 2019

Display work perfect. I bought the module because I program PDA computers with reading barcodes and so I can generate those codes directly (via web) on the display, I do not have to print on paper. The sample programs work. Only refresh the display is 5-8sec.

5 out of 5 stars
tommgr on 30 December 2018

It's working. Overall quality is good. The received module differs from the photo, there is no LED's near the e-ink display. Typical power usage for this module is about 45-50 mA. When using WiFi (connect, send data frame, disconnect ) there is a current burst up to 150mA. In deep sleep, consumes 7.4mA.
