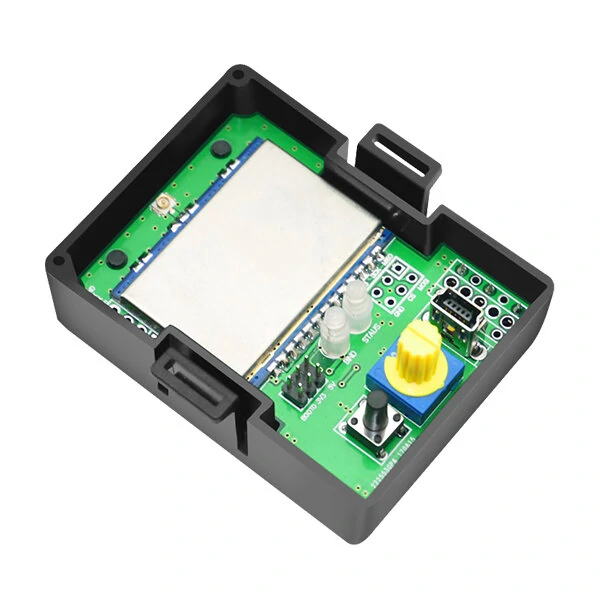

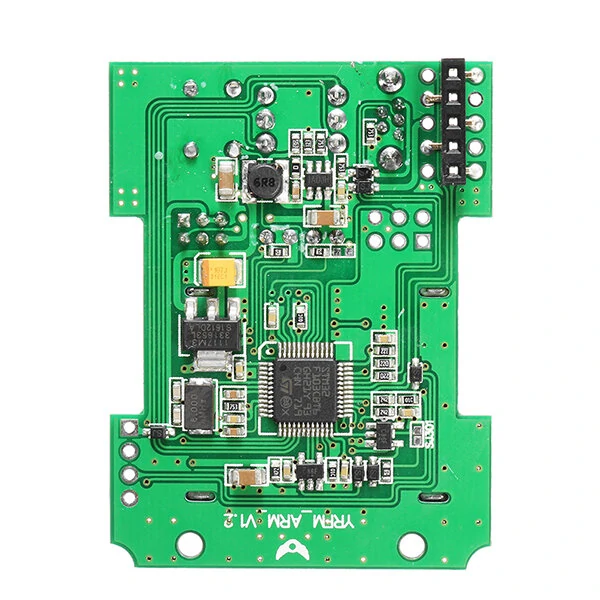

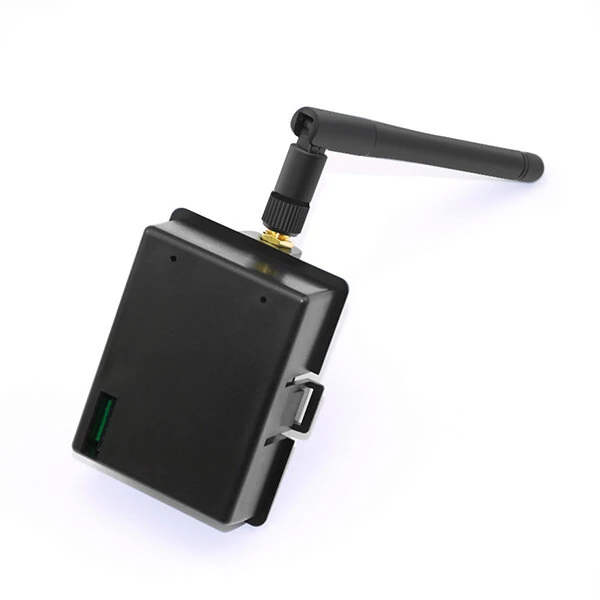

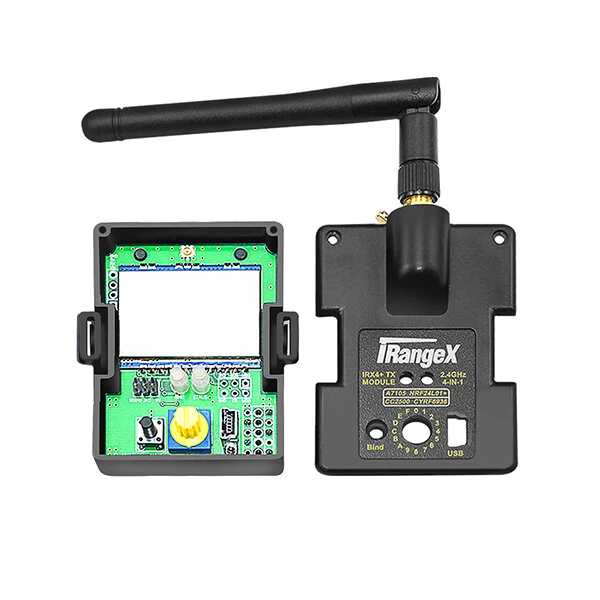

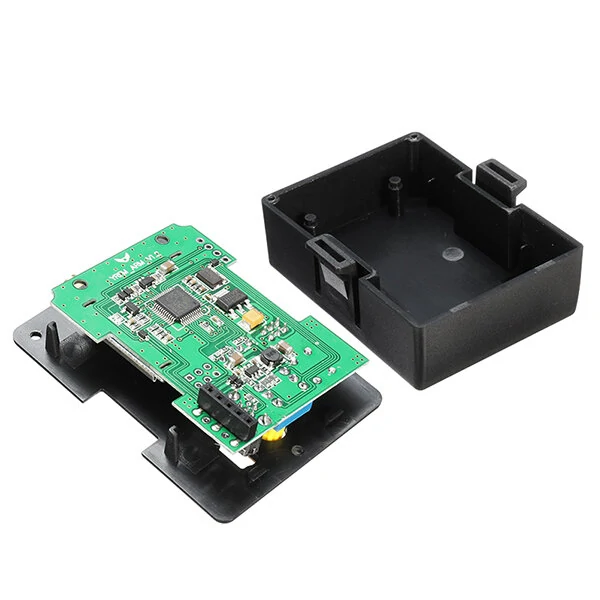

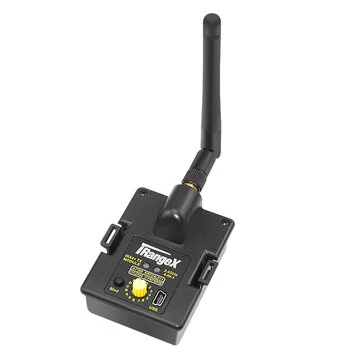

iRangeX IRX4 Plus 2.4G CC2500 NRF24L01 A7105 CYRF6936 4 IN 1 Multiprotocol ARM TX Module With Case
Questions and Answers
Will this also fit into the taranis x9e Jr module bay?
Yes
The firmware that comes installed on the module is not the same as the one by Pascal but oviouslly based on it, could you please post the source for your firmware? your hardware is a bit different from the original project hardware.
Snifttwas, this is NOT the same fw for THIS module. DO not use it. IRangeX has to post the correct fw for this + version module! Learned the hard way after using it!
Reviews
jozohornak86
on 31 October 2023
I just buy 1 piece of this multiprotokol, I can just say BEST OF!. My version is with flashed bootloader, I can flash it withou any additional soldering. Only little modification requited - you can see in added pictures... I use it in Turnigy 9X and there is bigger plastic holder of pins in module bay, so multimodule has to be little modified wit cutting 😉. After that, module nice fit in hole, just CLICK-CLACK 😉. I use soft tape, too, for better fitting in module hole. Flashing of module firmware withou any problems with latest version on 1.3.3.33, just only follow website options and instructions...: https://github.com/pascallanger/DIY-Multiprotocol-TX-Module/blob/master/docs/Compiling_STM32.md Module just tested and binding with AFHDS2A protocol... FlySky, so I want to test with another brands, I want to be sure, it is really multiprotocol 🤣. With this module I give second live for my transmitter Turnigy 9X! Now, I have "Superb" multiprotocol radio...: - flashed latest version of Er9x...v822 - multiprotocol module with latest fw - just only telemetry modification is missing, maybe later 😉 Bellow you can see any pictures. Thanks again for this item! Jozef.
Arnonos
on 15 May 2021
Works at Wonder in my Qx7S! You have to update the module and everything works perfectly. It is therefore possible to choose the protocol and bind directly via the radio without having to manipulate the Switch at the back. Just leave it in the High position. Very fast delivery in France. Thank you so much Banggood. Works wonderfully in my Qx7S! You have to update the module and everything works fine. It is therefore possible to choose the protocol and bind directly via the radio without having to manipulate the Switch at the back. You just have to leave it in the High position. Very fast delivery in France. Thank you very much Banggood
Thurinven
on 20 August 2020
Really nice multi protocol unit. Flashing it was difficult, I wasn’t able to flash it directly from my Taranis X9D 2019. Instead, plug it in to a computer, install drivers using Zadig and use software called Multi Flash. After firmware update it’s working great! I was able to bind my helis and FlySky receivers.
Gary Fisher
on 09 September 2019
With this module in either my Taranis X9D Plus or Turnigy 9XR-Pro, I can bind and fly all my quads, helicopters and fixed wing aircraft.This includes the Blade Inductrix FPV, Blade Inductrix Pro FPV, Cheerson CX-95S, Syma X1, SBEGO Pocket Drone 124, Tryant 215 with FrSky XRS Rx, Blade 200SRX Heli, Blade MXR Heli and many fixed wing aircraft. This module also gives you 12 channels DSMX/DSM2, 16 Channels FrSky and telemetry if the receiver is telemetry enabled. See pictures for set up.
Fabios
on 04 May 2019
Ho ricevuto il prodotto in tempi brevissimi. Il modulo è veramente valido sia per ciò che concerne le caratteristiche tecniche , sia per quanto riguarda la sua installazione e settaggio. Personalmente lo utilizzo su una QX7 e il funzionamento è prefetto. Ottimo prodotto.
Beaver_XT
on 08 January 2019
I use it with my Radiolink RC3S via PPM to drive a bunch of cars with 2-in-1 unit namely Mini-Q and WLtoys. It works well for every car I have. It nees some programming to configure the channels and setup so get a FTDI adapter too.
fred99
on 22 December 2017
With the new documentation of it's creator, Pascal Langer, this module is easy to flash via the USB port : https://github.com/pascallanger/DIY-Multiprotocol-TX-Module/blob/master/docs/Compiling_STM32.md
Arnoldo
on 21 December 2017
This is the best multiprotocol module for my Taranis Q X7 or X9D plus SE. For Taranis is the PPM yellow switch not necessery. The best function is using the protocols over the menu on the taranis. Watch I missing is the not working USB port. For the first you need to flashing a bootloader with FTDI serial module to get working the USB. Banggood - please install for the next IRX4 release a bootloader for using the USB port. Here my HowTo Video for install bootloader for USB (EN subtitles): https://youtu.be/qKsoTQQfy_4 You can get a FTDI adapter here: https://www.banggood.com/FT232RL-FTDI-USB-To-TTL-Serial-Converter-Adapter-Module-For-Arduino-p-917226.html?p=Z626141688898201505V
nestsurfer
on 19 December 2017
nach 14 Tagen in DE angekommen. Modul wird out of the box von meiner X9D+ erkannt. Test steht noch aus. Möchte das Modul für meine WLToys V950 und V977 Helis nutzen.
old4570
on 04 December 2017
I just had to have the IRX4+ after having owned the IRX4 for several months . I only have the Flysky 9x with stock factory firmware that the IRX4+ can plug into . And it does plug in with no issues . The IRX4+ case has been changed / upgraded to allow insertion into the back of the 9x ( Flysky ) . I was easily able to bind the 9x to my JJRC H36 and have a quick fly . I then put the IRX4+ in my Taranis Q x7 and flew the JJRC H36 again . If you are looking for a multi protocol module for your 9x / 9XR / 9XR pro and you dont want to flash the firmware . Then the IRX4+ is the module you want .
