Battery Protection Module

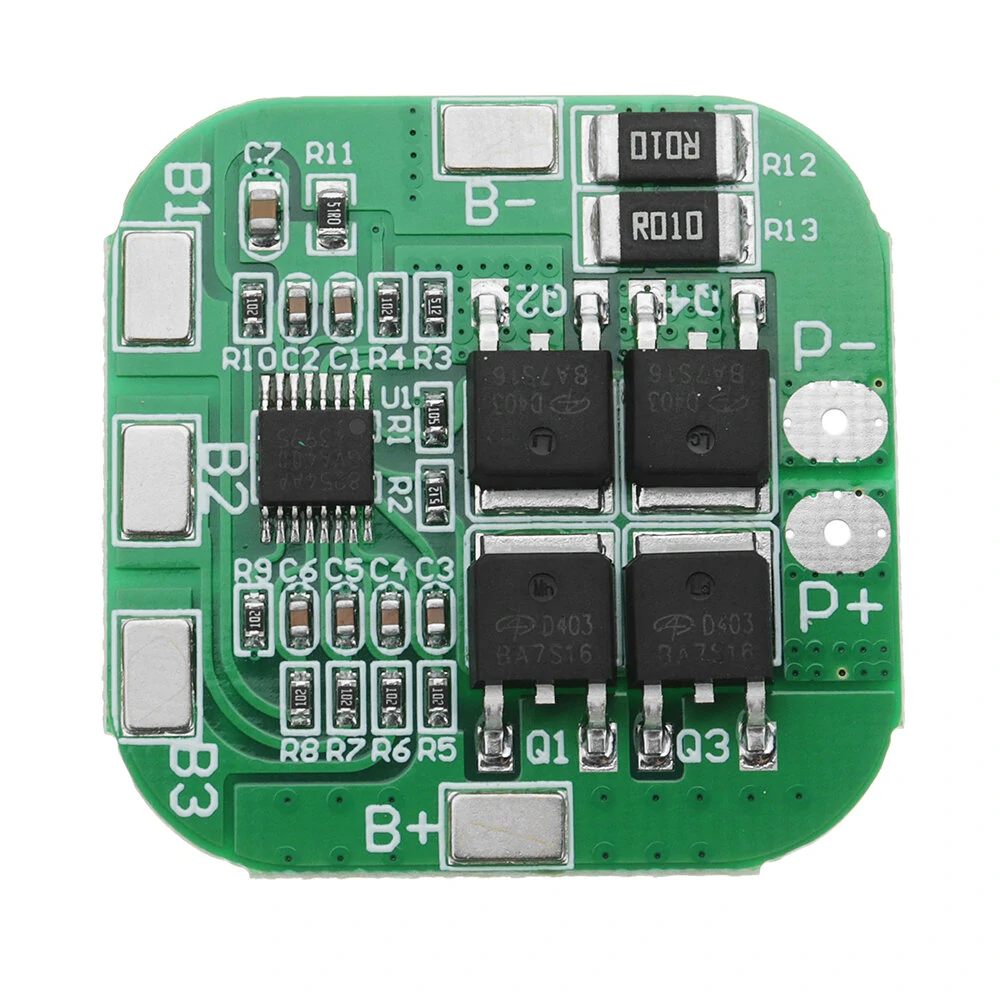

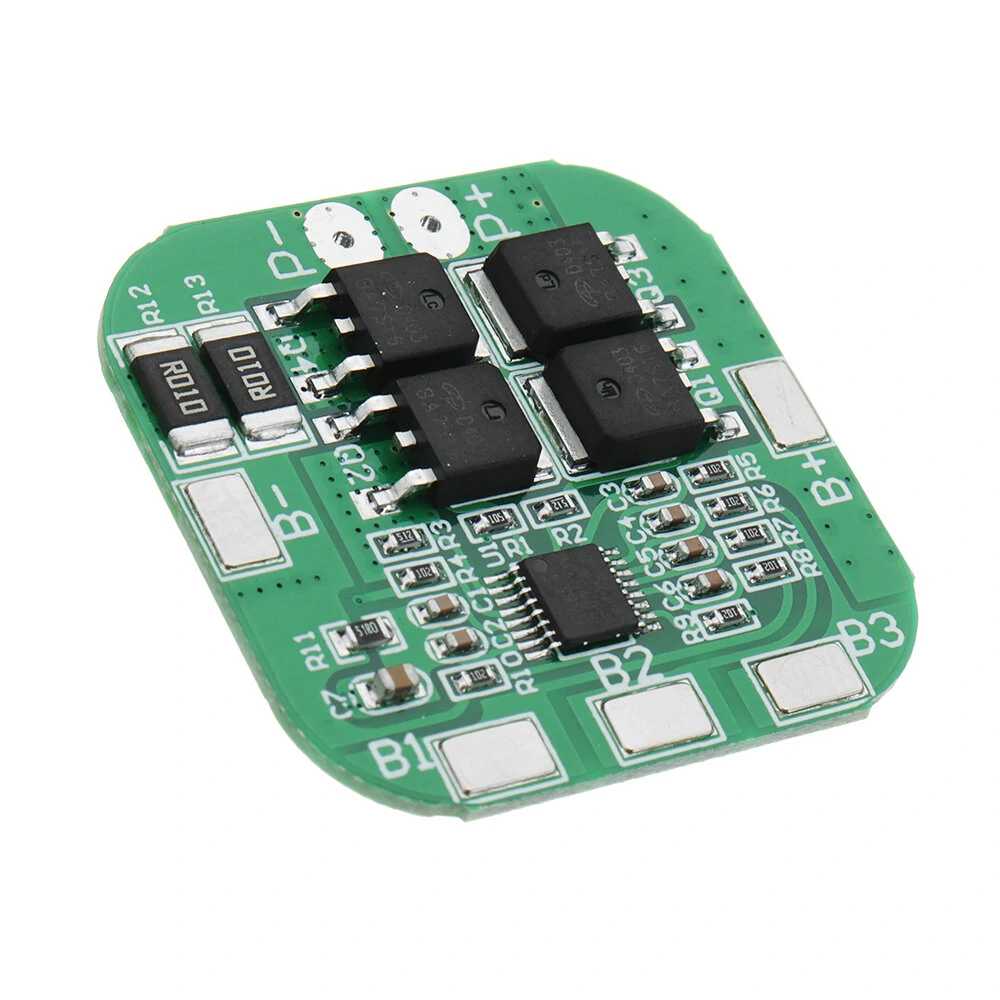

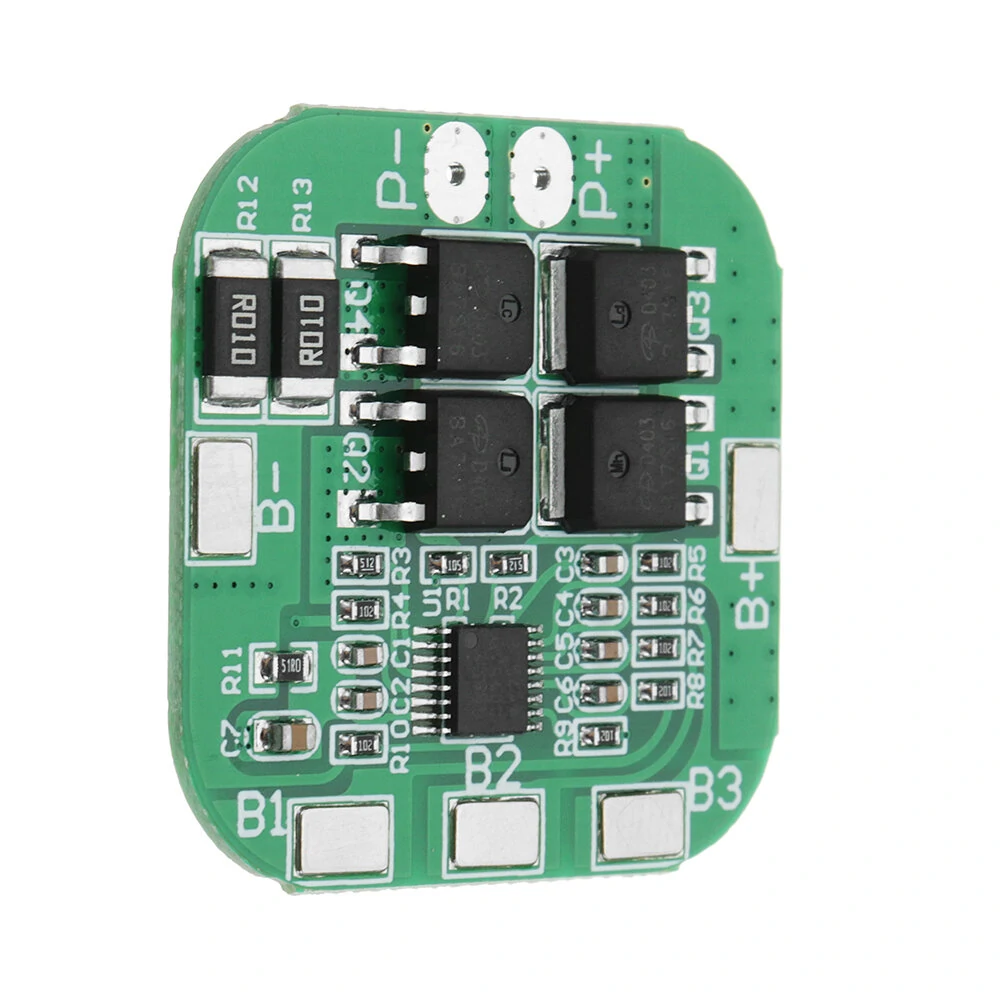

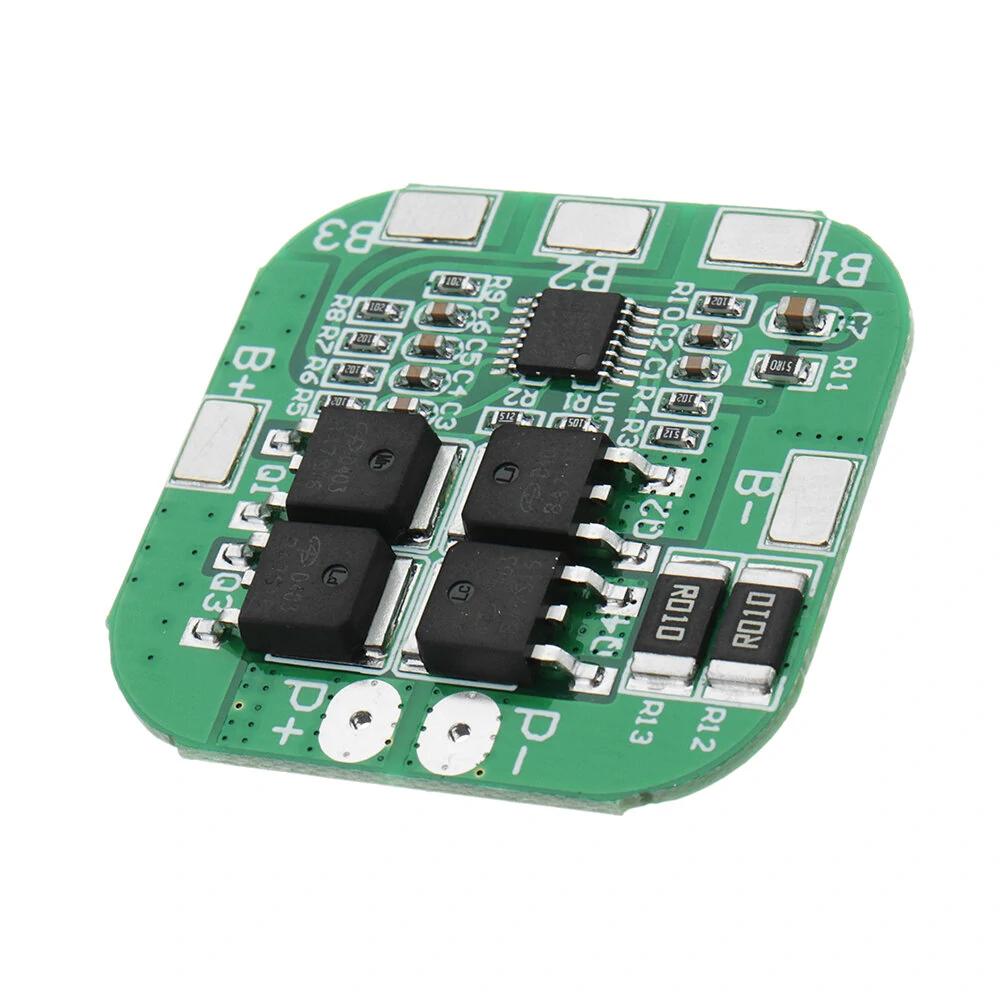

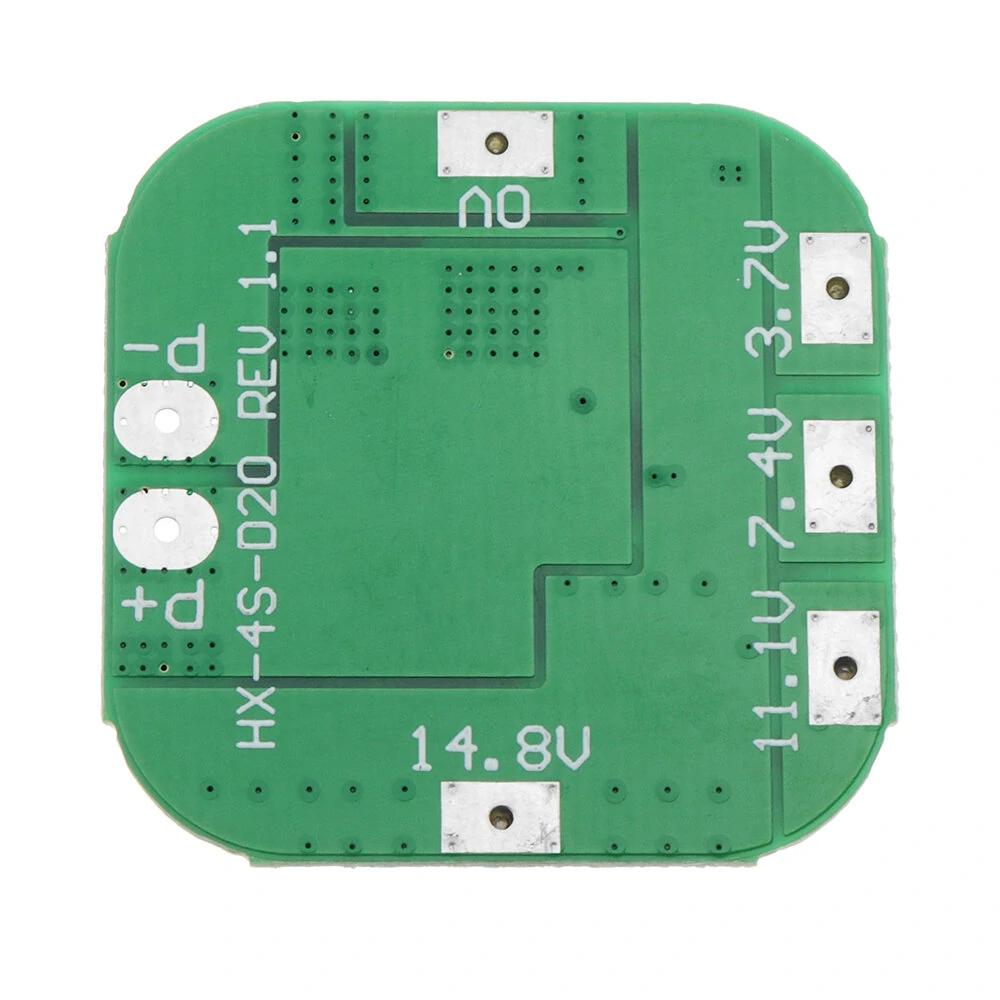

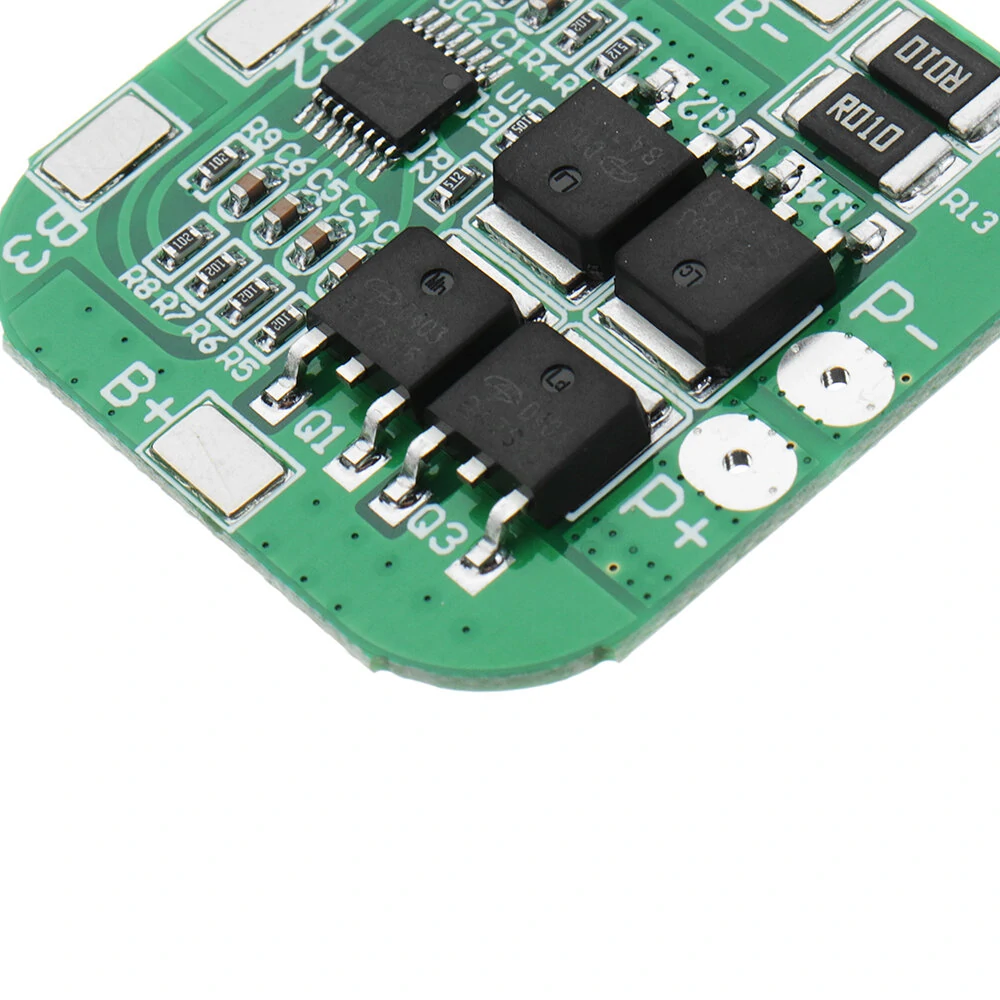

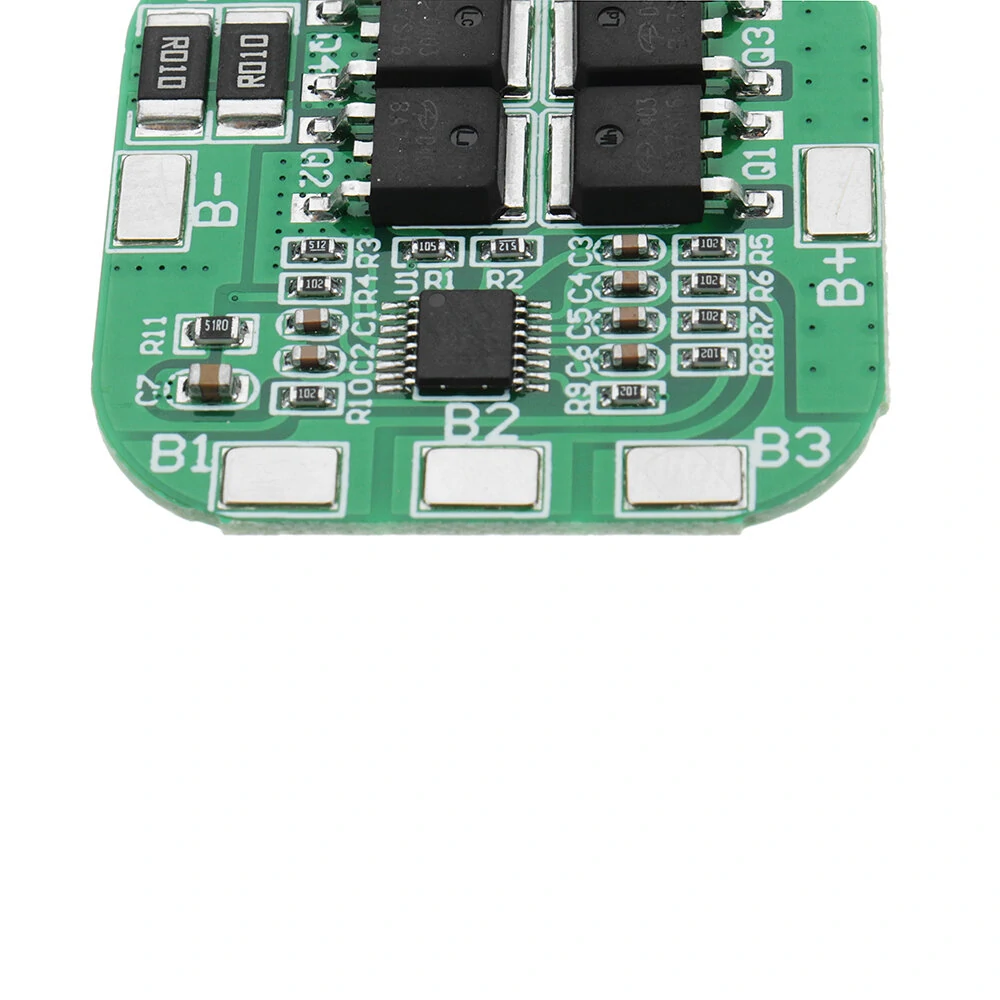

DC 14.8V / 16.8V 20A 4S Lithium Battery Protection Board BMS PCM Module For 18650 Lithium LicoO2 / Limn2O4 Short Circuit Protection

Last updated: 05 August 2025
4,90 72 reviews
🛒 4,62$ from Banggood 🛒
Ship From: CN
3.694 Heats
397 Wishlist
Share on:
Questions and Answers
Q

Why, with full batteries, if I press the start button fast, the engine starts and then stops? Do I have to press the dolcemnte button to get maximum speed?

by BG481942508, on 15 December 2021
A

Sure

by CGRAVES91, on 01 April 2022
Q

The charge voltage how many volts?

by BG481942508, on 15 December 2021
A

16.8V

by CGRAVES91, on 01 April 2022
Reviews
5 out of 5 stars
BG524817442 on 03 September 2024

Are they the same Amber?

5 out of 5 stars
BG383534155 on 07 April 2023

i like your product. thanks banggood

5 out of 5 stars
Zsolt on 13 July 2022

I haven't tested it yet

5 out of 5 stars
Alex Stamatov on 24 June 2022

Very good

5 out of 5 stars
Fodor Aurel on 02 May 2022

Am primit the timp.Multumesc.tOTUL E OK

5 out of 5 stars
skizz75 on 24 March 2022

works well.once you make the connections from the two prongs it won't come out power until a small charge is plugged in, then it will work.

5 out of 5 stars
BG105317384 on 16 December 2021

Thank you, everyone. I got the order. Excellent

5 out of 5 stars
Shonver on 21 September 2021

Well-built. Has spot-weldable pads on the battery connections. I have not tested it extensively. What I have observed: 1. My cells had been discharged to between 2.9V and 3.2V. There was no output from the 4S battery pack. I charged it at 16V/1A (constant current) overnight. The next morning the battery was charged. 3 cells measured 4.000V and one was at 3.994. Note that this is not a BMS (battery management system), but a battery protector, so that result was probably due to the condition of the cells. 2. After charging, the battery output was activated, and I was able to power my BlueTooth amplifier from it. 3. I read up on the chip specs, ABLIC S-8254AA, which explains that it protects the cells from over-charge and over-discharge by monitoring individual cell voltage. It also allows for overload (too much current draw). Under these three conditions, the battery will be disconnected (no output). My experience so far shows that cell under-voltage works. I don't know if I'll get to test over-voltage and current overload. However, by inspection, it looks like all three functionalities have been implemented (circuit for over-voltage and under-voltage is the same; sensing for current overload has been included). Recommended!

5 out of 5 stars
lomgkoq on 15 September 2019

Circuit de bonne qualité, Bonne idée les coins arrondis.

5 out of 5 stars
javier_pedro1988 on 31 July 2019

excelente producto
